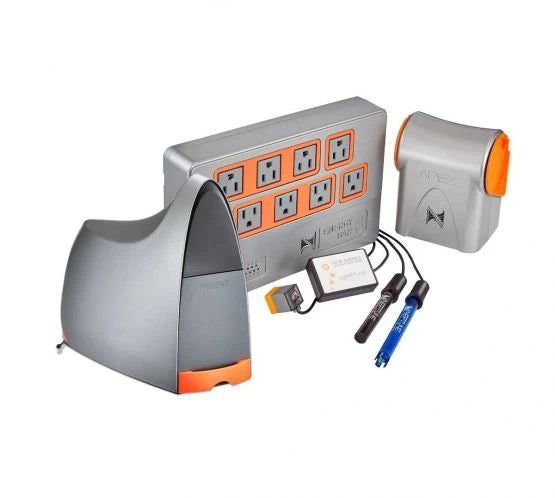

Neptune Systems Trident and A3 Apex Controller System Bundle

THE APEX ECOSPHERE-- LESS HASSLE, MORE SUCCESS

The Fusion interface has a user-friendly design sure to create a headache-free command center for all your aquarium automation needs. Its drag and drop interface allows you to toggle control switches, graphs, video tiles and more to your dashboard, allowing for easy customization that is focused on your individual monitoring needs. Being that the Fusion is a web-based application, you will never have to endure the rigmarole of endless app updates, clumsy touch screens, or complicated drivers to install. Whenever you open the interface, you are always running the most current version of the software. Set up and configuration is streamlined with an easy-to-follow guided user interface.

A3 Apex Base Unit
The A3 Apex is a great entry into gaining full control over your tank, giving you everything you need to get up and running at an affordable price. Monitor temperature, pH, surface leaks, and water level with the ability to control additional aquarium equipment with the included EB632. The A3 Series Apex base unit includes a built-in audible alarm and three FMM ports for connecting all fluid monitoring sensors, an upgrade from the A2 Series which required a separate module purchase.

ENERGY BAR 632 – THE ULTIMATE POWER CONTROL HUB - (The UK outlet variation found in United Kingdom, Singapore, and other countries around the world)


And, each individual outlet has independent power monitoring and there are individual LED indicators for each outlet.

CERTIFIED TO CE STANDARDS - Your safety is important to Neptune Systems. This is why we design every product to established safety standards. In the case of the Energy Bar 632, and given it is a line-voltage device, we have taken that a step further and confirmed it meets CE Safety Standards.

POWER MONITORING - For years we have been asked to provide power monitoring of the individual devices connected to each outlet – but it just wasn’t possible without pricing the product out of the range of most consumers. Now it’s here and with comes tons of benefits. With this power information regularly monitored, you now know when your pump, skimmer, powerhead, UV, or any other device is not operating normally and an alert message can be sent. This enables you to catch issues right when they happen – or better yet when they are on the road to failure. Also, for many of us the cost of the electricity to run a successful aquarium is a major concern in our household.  Even for those where electricity is cheap, we believe most aquarists care a great deal about their energy consumption and its effect on the environment. Ironically, our energy usage could be directly connected to excess greenhouse gasses, the warming of the oceans, and the bleaching of the corals! However, armed with this power usage information, we believe aquarists will not only be able to make operating and purchase decisions that will save them hundreds of dollars a year, but they will also be able to reduce their carbon footprint.

BUILT-IN 1LINK AND 24VDC PORTS - This Energy Bar has a built-in 100W, 24VDC power supply that can control up to three Neptune Systems 1LINK products like the WAV and DOS.   It also includes two switchable 24V DC on/off outlets that are compatible with any 24V device under 30W and Neptune Systems 24V accessories like our Practical Multi-purpose Utility Pump (PMUP) and solenoid valve.

INDIVIDUAL OUTLET INDICATOR LED - Each Energy Bar AC outlet as well as the two 24VDC accessory ports have their own status LED. This LED tells you when that outlet is energized. The LED will also blink rapidly if a device is plugged in that exceeds the current capability for that outlet.

ALARMS AND DECISIONS BASED ON POWER - Since the Apex is receiving continual power usage data from the Energy Bar 632, it can be configured to send you notifications when a device is not using power as it should be. An example would be a return pump showing no power consumption when the outlet is on. Or, tell you when a skimmer has a clogged airline because power consumption will show differently than normal operation. These high and low limits are completed customizable by individual outlet.  You can even use this power data to control other devices.

ALL OUTLETS RELAY SWITCHED - Times have changed and it is fairly uncommon now for aquariums to have AC devices that must be cycled on and off continuously. This means that we could now switch all AC outlets to relay switching.

*NEW* MOS Magnetic Optical Sensor
The Neptune MOS replaces the previous OS-1-M and features an updated design that fits into tighter spaces and helps to prevent water incursion into the sensor. The MOS plugs into an Apex FMM port and, using reflected infrared light, will signal your Apex when it changes state from being wet to dry or dry to wet. This sensor can be used for constructing your own ATO (auto-top-off), as a high-level warning sensor in your sump, water storage level sensor, and much more. The sensors can be mounted on any type of reservoir that has up to 1/4" thick walls.

LD-2 Surface Leak Detection Sensor
Neptune's LD-2 is a full sized leak detection probe perfect for inside your stand, on hard floors, on top of skimmer cups, or any other flat surface where an overflow may cause issues. If water ever touches the sensor, your Apex Controller will be instantly notified so you can take corrective action and avoid disaster.

Lab Grade, Double Junction Probes
The Apex system includes high-quality probes for monitoring your tank's temperature and pH. Calibration is a quick and simple process via the app dashboard, which will automatically recognize when your readings have stabilized and letting you know when to move to the next step-- no more guesswork and reading RAW data. In addition, the double junction pH probe will allow your readings to stay more stable without the need to calibrate as often.

Backwards Compatible and Easily Expandable
If you have any old modules, head units, energy bars, or other Apex accessories they will work flawlessly with the new Apex Controller. Want to add Salinity monitoring? Just connect a PM2 module. Need Dissolved O2 monitoring? Simply add a PM3. The Neptune Systems Apex is expandable and compatible, making it the ultimate reef tank aquarium controller.

A3 Apex Bundle Includes:

•

• 1x A3 Apex Base Unit
• 1x EB632 Energy Bar 632
• 1x Temperature Probe
• 1x pH Probe
• 1x MOS Magnetic Optical Sensor
• 1x LD-2 Leak Detection Sensor
• 1x 6' Aquabus Cable
• Calibration Solutions (7 & 10)
• Mounting Screws
• Getting Started Card

TRIDENT

The Trident is an automated testing system that regularly tests alkalinity, calcium, and magnesium in your saltwater aquarium — and then communicates this information to your Apex so you can get alerts, and change your dosing. When combined with the DOS (available separately) it creates a fully automated system for the proper dosing of supplements, maintaining them at consistent levels.

Using an automated titration method, with colormetric identification, the Trident automatically tests your aquarium water up to 24 times a day for Alkalinity, Calcium, and Magnesium. The Trident tests consistently with a precision of +/- 0.05 dKh for Alkalinity and 15ppm for Calcium and Magnesium. Using any hobby-grade test kit on the market, even humans cannot perform the tests that consistently.

Syringes, vials, colors, endpoints, expiration dates — now a thing of the past for Alkalinity, Calcium, and Magnesium. Now, with zero effort, you get up to date values for Alkalinity, Calcium, and Magnesium — anywhere in the world!

The Trident is a self contained automatic titration colorimeter. That’s quite a mouthful, for sure, so let’s state it as simply as we can. The Trident is basically automating what you (and top scientists) do already when you test your water, that is, perform a color changing titration and interpret the results.

On a scheduled basis the Trident carefully mixes its reagents with a small amount of sample water from your aquarium. While doing this, it is measuring (titrating with a precision peristaltic pump) the amounts of each that are necessary to reach an expected color change (determined by the electronic colorimeter). When it finishes the titration, it sends this sample/reagent fluid to your waste container. It then interprets the results of that test and logs the value into your Apex.

From the box to testing in under 15 minutes! Unlike other testing systems, there are no reagents to mix, tubes to cut, or pumps or probes to calibrate. Simply plug in one cable, two tubes, and run the setup task on the Apex Fusion mobile app — it holds your hand through the installation with helpful videos along the way.

When you start getting the regular data coming in from the Trident you will be amazed at the things you can see happening. The daily light cycle swing on calcium carbonate uptake. A salinity drop by watching magnesium. An out of sync dosing of calcium. This increased understanding ultimately helps you maintain a better, more successful reef.

You can set up your Apex to alert you, or take immediate action(s) when a parameter falls outside of the safe zone you specify. As just one example, you might be dosing an Alkalinity solution and a misconfiguration could lead to overdosing of your tank. The Trident will catch that, alert you, and give you more time to make that correction before its too late and to save your aquarium. The data from the Trident can also be used to turn on and off other devices (like dosers or solenoids) to protect your tank even more.

AUTOMATIC DOSING CONTROL – ULTIMATE STABILITY
The more stable you maintain proper levels of Alkalinity, Calcium, and Magnesium, the better your corals will grow and thrive. But coral uptake of these supplements often changes and requires us not only to perform more testing, but also seems to put us in a never-ending state of adjusting our dosing levels.

The Trident, when paired up with one or more of our DOS systems solves this problem with Automatic Dosing Control (ADC)

When configured on the Apex, ADC will take the results it receives from the Trident and use them to gradually turn up or down the amount of additive your DOS delivers. But, don’t worry, we have built this feature with safety in mind. With ADC you set your target value and your starting dosing amount and ADC will only tune that dosing level +/-35%. If it takes more than that amount of dosing to keep your aquarium at your target value, then the Apex will stop ADC, revert to your starting dosing amount, and alert you that you need to manually adjust your dosing level. Then, ADC can be reenabled and it will continue to guide your DOS so that it keeps you as close to your target value as possible.

It is possible to use ADC for all three tests – Alkalinity, Calcium, and Magnesium. You can also use one test value to adjust up or down more than one additive delivered by the DOS (i.e. Triton system).

When using the default testing schedule of four (4) alkalinity, two (2) calcium, and two (2) magnesium tests a day, the reagent stored inside the Apex will last a full month. And adding new reagent is super simple — just slide out the drawer, remove the old bottle(s), and replace them with new ones. If you desire, you can also run a calibration with the included calibration standard.

You will hear the Trident operate from time to time if you listen closely or you have a super-quiet room.  And, as compared to other automated testing systems, it is several dB quieter. While inside your cabinet along with your other equipment, you will likely never even hear it.

• Trident
• 5 of black sample line tubing
• 5 of clear waste line tubing
• 1-month reagent supply
• Calibration Fluid
• Get Started Card
