Description

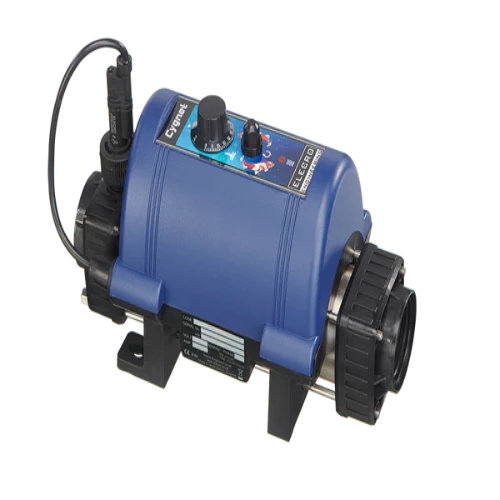

Elecro Nano Cygnet Analogue Heater (Titanium Element) - Specifically designed to ensure maximum safety, reliability and efficiency, the Cygnet Aquatic heater is user-friendly and offers “plug & play” installation for the 1-kW to 4-kW models. The thermostat dial gives you control over the desired pond temperature, while the thermal cut-out protects against over-heating.
Features & Benefits
- Various power options ranging from 1-kW to 4-kW
- Easy installation, fully equipped and pre-wired
- Robust, durable construction
- Ultra-reliable flow switch allows safe operation
- Supplied with temperature thermostat and overheating sensor
- Compact, durable design
- Analogue control with 1.2°C differential
- Titanium flow tube and titanium heating element
- Can be floor or vertically wall mounted
- Vortex, long life, stay clean heating element technology
- 100% efficiency throughout the product life
- Silent operation
Technical Data
| Power Supply |
220-240V single phase |
|---|---|
| Flow Requirements |
Minimum flow: 1m³/h |
| Heating Element |
Grade 1 titanium |
| Flow Tube |
Grade 1 titanium |
| Control Thermostat |
Analogue: 0>45°C (1.2°C differential) |
| Safety Thermal Cut Out |
60°C (manual reset) |
| Flow Switch |
Gold tipped reed switch with titanium fulcrum pin |
| Relay |
Surface mount DPDT Finder 66.82.8.230.0000 |
| Seals |
High temperature special formula EPDM ferrules, TPE end fitting gaskets |
| Water Connections |
1.5" BSP female thread supplied with 1½" / 50mm stepped ABS unions for rigid pipe and 1½" / 1¼" stepped hose tails for flexible pipe |
| Ingress Protection Rating |
IP44 |
| Frequency |
50/60 Hz |
| Working Pressure |
4 bar maximum |
| Mounting |
Floor or wall mounting |
