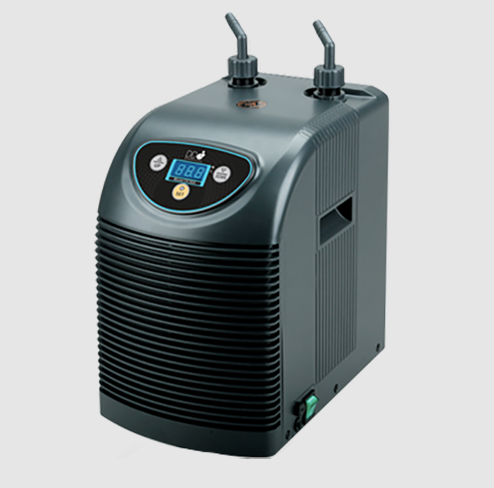

DC300 Refrigerated Chiller

DC300 Refrigerated Chiller. Temperature control within an aquarium is an important parameter in helping to reduce stress on fish and corals where high temperatures or excessive temperature variations can result in coral bleaching or death. D-D have been supplying chillers for several years that provide high efficiency, proven reliability and economy with respect to both running and initial purchase costs. The new DC300 refrigerated chiller is compact enough to fit in most cabinets but has a cooling capacity of 300W making it ideal for aquariums of 150 lts at a 10°C temperature drop to 300 lts with a 5°C temperature drop.

Features
Microcomputer control - for accuracy and ease of use with a built in temperature memory system in the case of a power failure. Integral over temperature cut off.
Pure TITANIUM heat exchanger /evaporator - for it's extreme anti corrosion properties in a saltwater environment.
Low running noise
High efficiency, latest generation cooler - for low running costs.
Superior quality condenser - for reliability and low noise.
Robust metal chassis - for strength and anti vibration properties
Contemporary housing design - to fit with most decors.

Specifications
Cooling Power - 300W
Voltage - 220-240V
Frequency - 50Hz
Current - 0.8A
Water refrigerated - 50-300lts
Refrigerant - R134a
Water flow - 200-1000 lts/hr
Weight - 9.5Kg
Dimensions - 338 x 218 x 325mm
Inlet and outlet - 12mm (12-16mm Eheim pipe)
Compressor design - reciprocating compressor
Performance
The performance chart below shows the cooling curve for the DC300 working on an aquarium of 150 lts of water which starts at a water temperature of 28°C. You can see the drop in temperature of the aquarium hour by hour as it is recirculated through the cooler.
