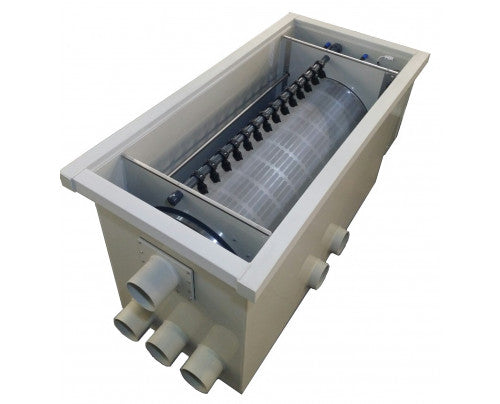

Burtons TF-1000 Pond Drum Through-Flow Filter

The Burtons TF-1000 Pond Drum Through-Flow Filter is a comprehensive filtration solution tailored for substantial pond environments. This model stands out with its increased inlets and outlets, featuring 3 x 110mm inlets at both the front and back and 2 x 110mm outlets on each side, enhancing water flow and filtration efficiency.

The design includes a 60-micron screen and a weatherproof auto control box with a socket panel for straightforward UV and pump integration. The waste chute in the TF-1000 is specially designed with additional cleaning tips to prevent the buildup of waste, ensuring consistent and effective filtration. The drum filter also incorporates a safety feature with a cover switch that cuts power to the motor and UVs when opened.

This unit is pre-fitted with a low wattage wash pump and boasts a large flow rate capacity, making it suitable for both gravity-fed and pump-fed systems. With its low energy consumption, the TF-1000 is an energy-efficient choice for maintaining pond clarity and health.

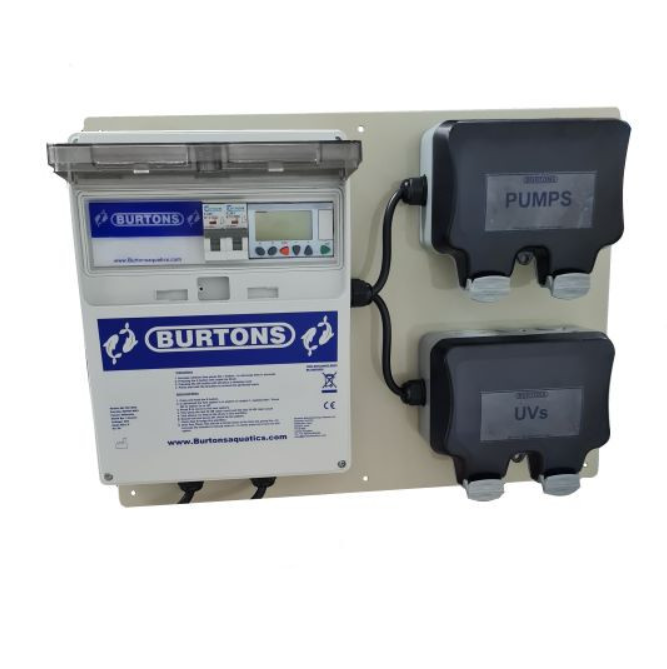

• As standard in the Burtons range, these drums come with a 60 micron screen, and a weather proof auto control box, which now comes complete with our socket panel as standard which means you can just simply plug your UV and pumps straight in to the sockets for easy installation.

• Our through-flow TF drum filters feature more inlets and outlets than our standard range.

• They have 3 x 110mm inlets on the front and the back, and 2 x 110mm outlets on either side of the drum.

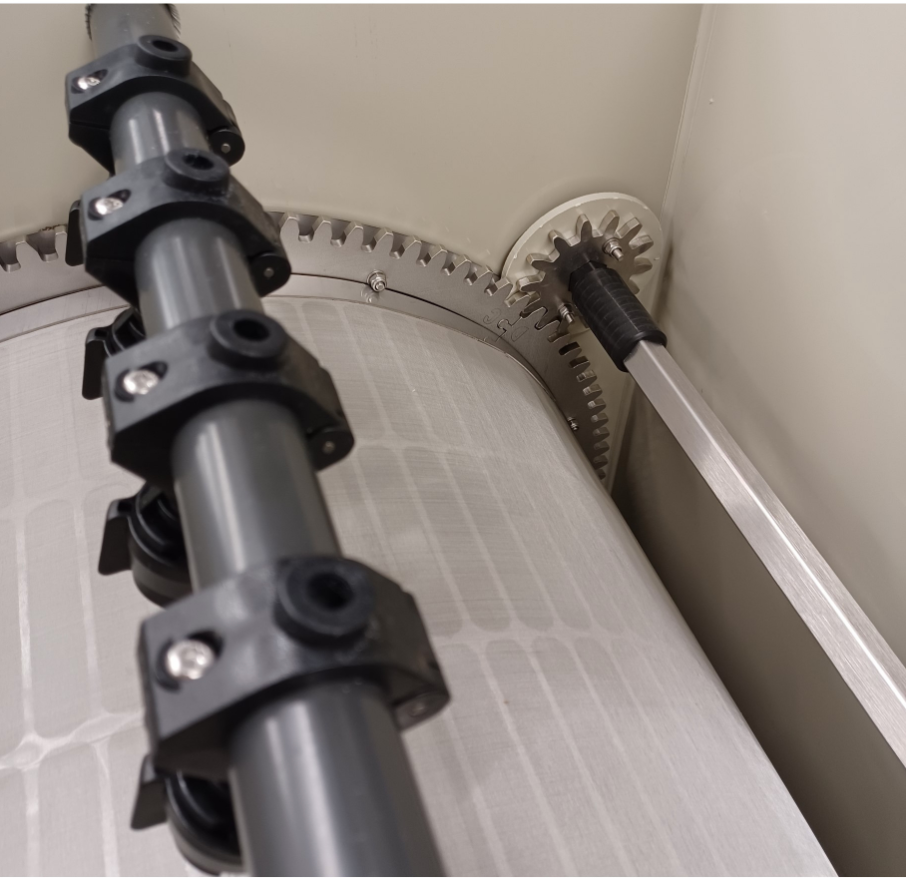

• The waste shoot also features an additional 2 cleaning tips to avoid build up of waste in the internal end of the waste chute.

• This drum filter is fitted with a cover switch, which cuts power to the drum motor and UVs when the lid is lifted off.

• Low wattage wash pump included and pre fitted.

• Installation height above water level is 25cm.

• 2 x 80-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

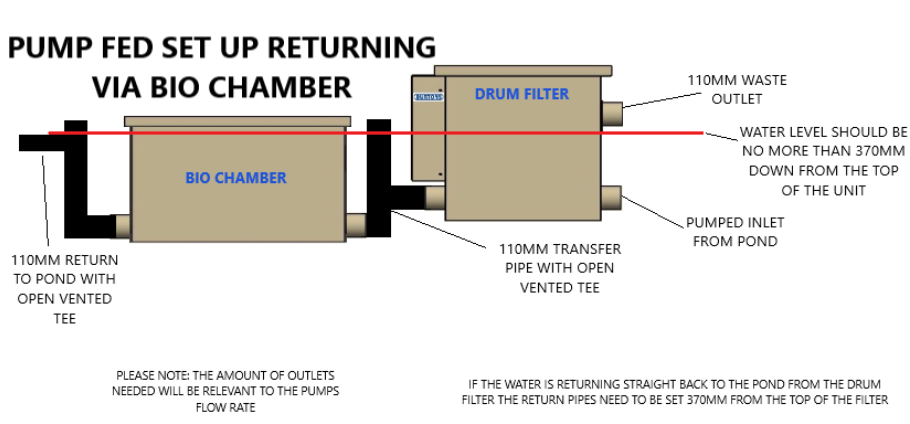

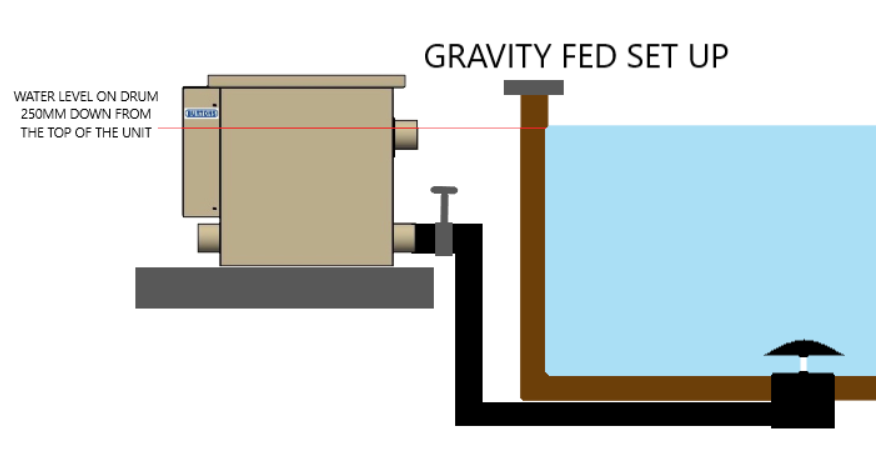

• Suitable for flow rates up to 110,000lph for gravity fed systems and 75,000lph for pump fed systems.

• Low energy consumption 1.3watts in standby mode and 250 watts when cleaning.

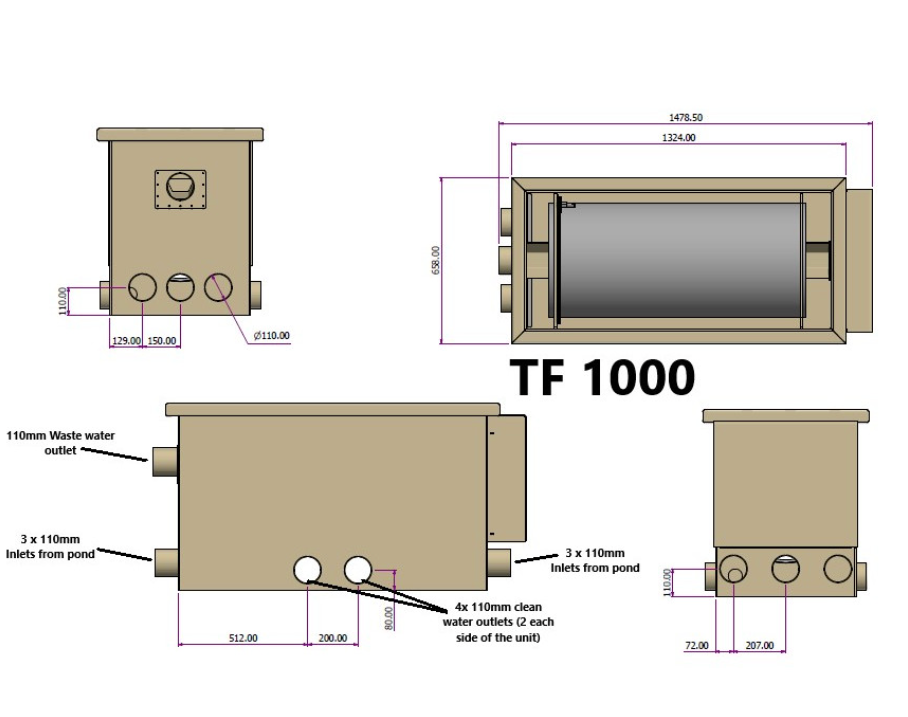

• (WHL) 658 x 740 x 1480 (MM).

Stock subject to Burtons availability.
